Mechammer Mark II Planishing Hammer

Part #: Mechammer
Ships From: Our warehouse

Lead Time: Usually ships within 1 week

We want to give you the best information possible regarding your order at Trick-Tools and product availability is very important to us. This information reflects our best estimate of the shipping time for your order on a product by product basis. Items in stock at our warehouse typically ship same day if the order is placed before 3pm Central Time.

Availability on Items shipped directly from the factory is an estimate for that product based on averages from our experience. Items marked "Call for availability" have limited stock or unpredictable lead times and require a phone call to get a lead time estimate. We apologize but we are unable to guarantee lead times on factory-shipped items.

Price: $6,595.00

BEST SELLER

Variable Speed up to 3000 bpm
Interchangeable weights to fine tune impact on material
16 gauge forming capacity
Made in the USA

FREIGHT:

ORIGIN:

BRAND:

DESCRIPTION

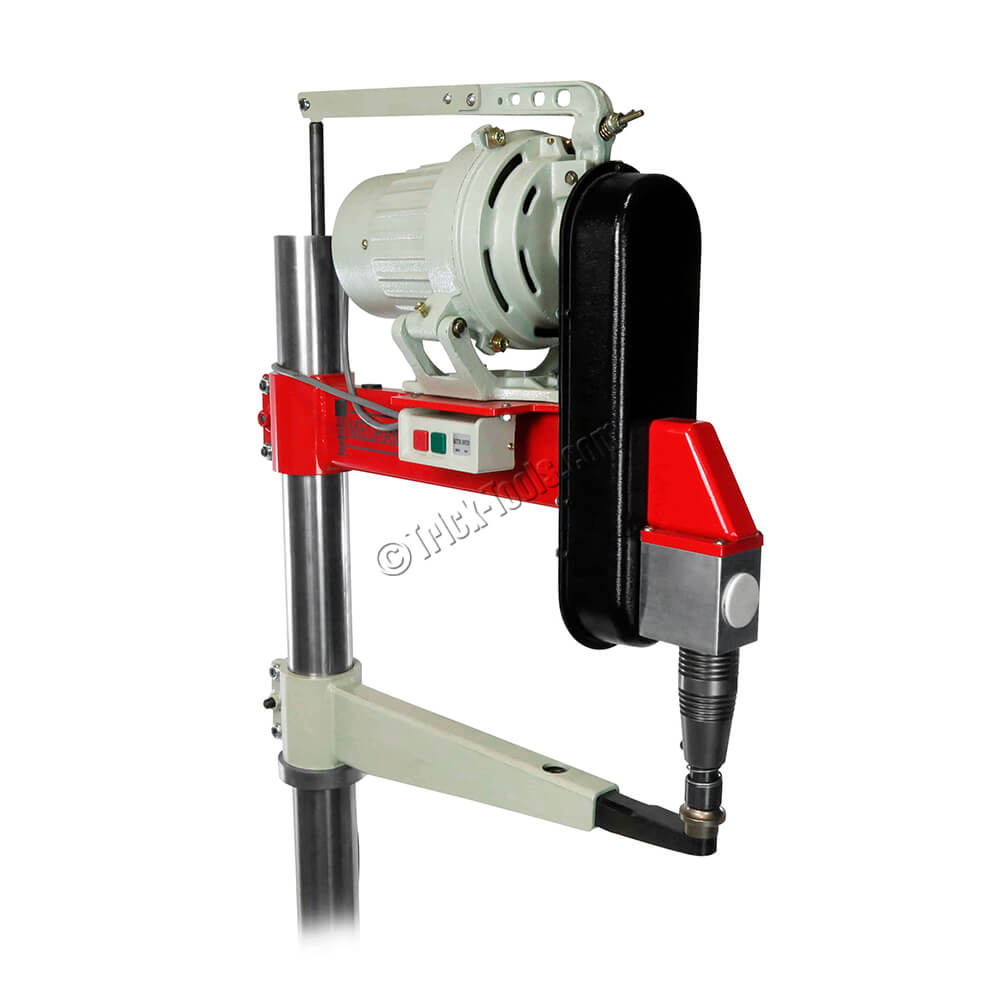

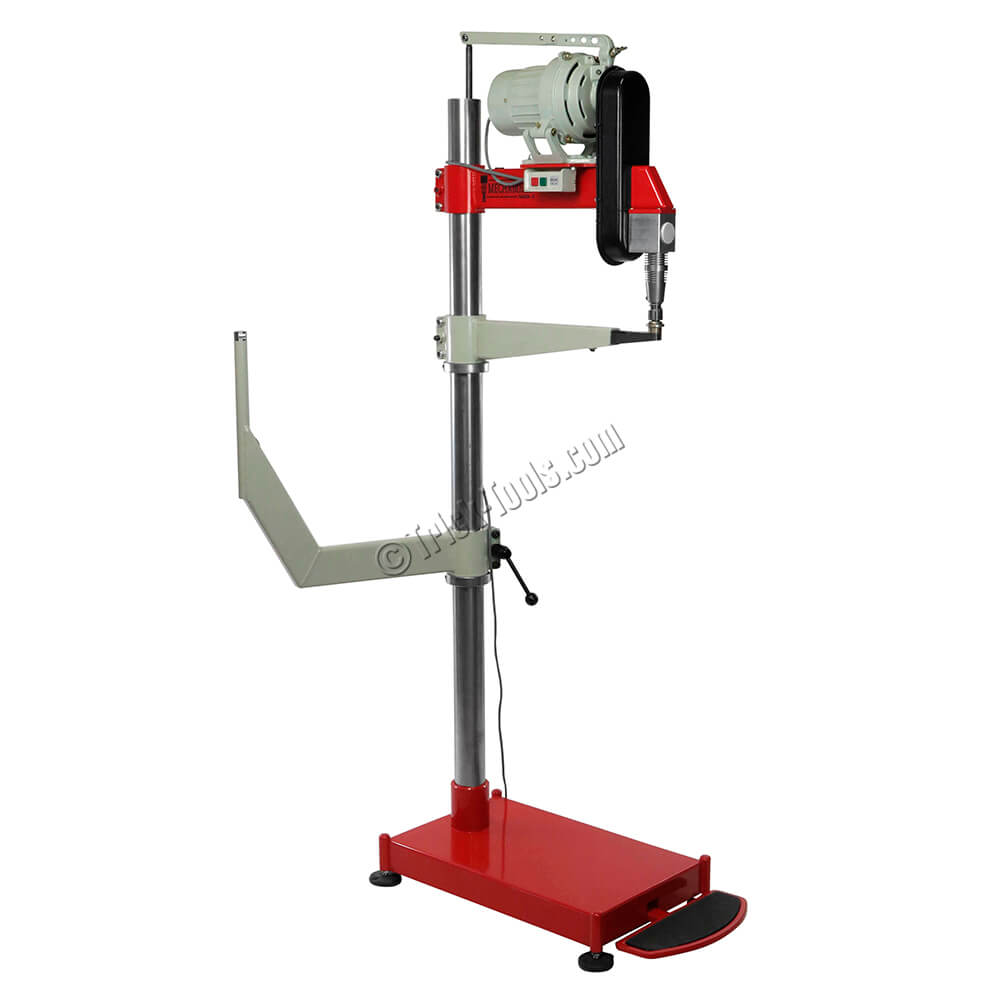

The Mechammer Mark II Planishing Hammer is affordable, easy to learn, and easy to use. Mechammer calls it their 'set it and forget it' machine, implying once the machine is set up, it doesn't require constant adjustment for varying material or thickness. The electric motor and clutch drive system powers a belt driven air motor that operates a reciprocating piston. The piston works with the installed tooling to create cushioned hammer blows to your panel. Pistons are interchangeable for heavier or lighter blows to the panel and can help fine-tune the hammering action to achieve the proper shape. An aluminum piston is also available for aluminum work and fine planishing applications.

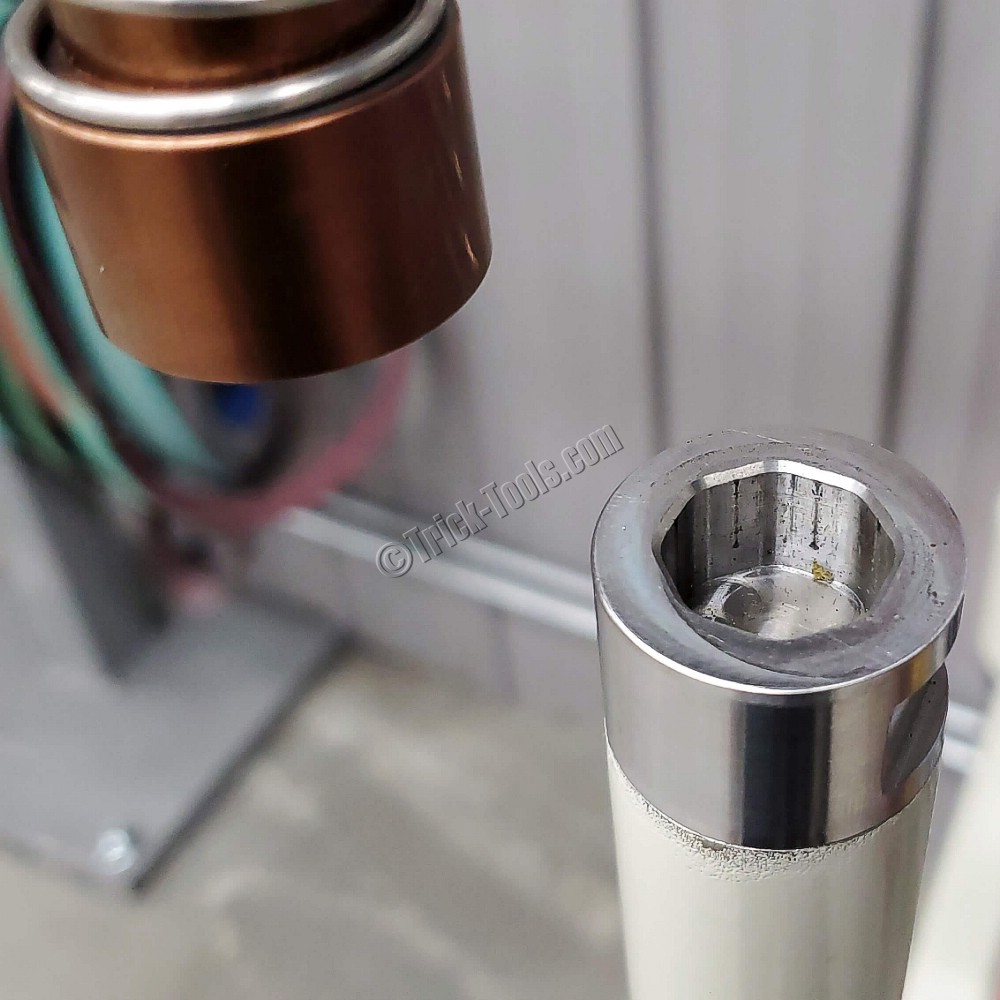

Unlike traditional planishers, Mechammer dies do not clamp the material. Dies simply rest on the material to give the operator ultimate control of the panel. Die sets are available for a variety of tasks such as planishing, beading, shaping, flagging, and tipping. Other specialty anvils including linear stretch and thumbnail shrinking dies are offered as well. Mechammer offers extensive tooling options that are not found with other brands. See the Accessories tab for a complete list of Mechammer Tooling.

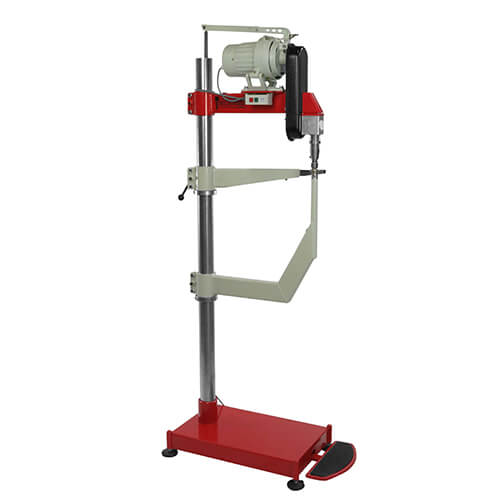

Additional features include a 22-inch throat depth, variable speed operation up to 3000 beats per minute, and a secondary flanging arm for use in tight clearance areas.

Warranty:

1 year manufacturer's warranty

SPECIFICATIONS

•Throat Height (inches): 22
•Throat Depth (inches): 20
•Steel Capacity: 16 gauge (1.5mm)
•Strokes per Minute: Variable Speed up to 3000
•Motor: 110v
•Weight (pounds): 325
